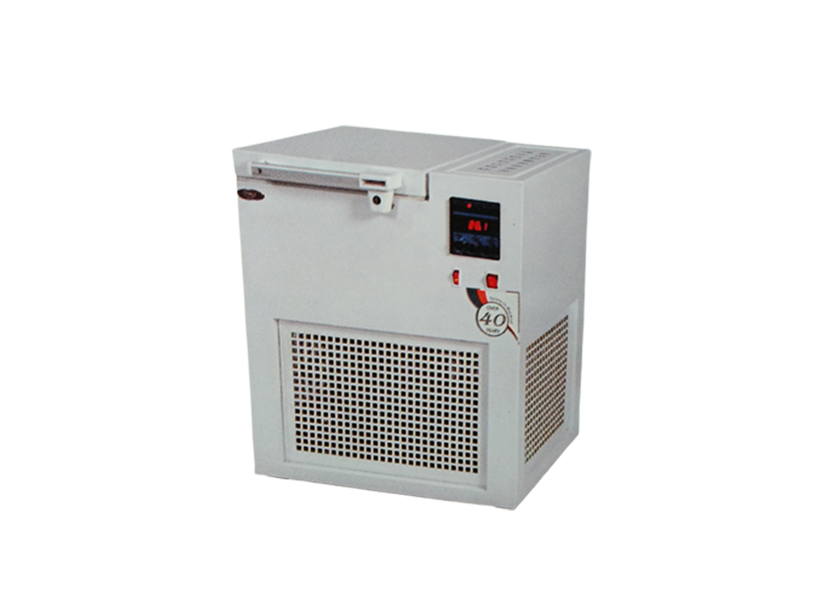

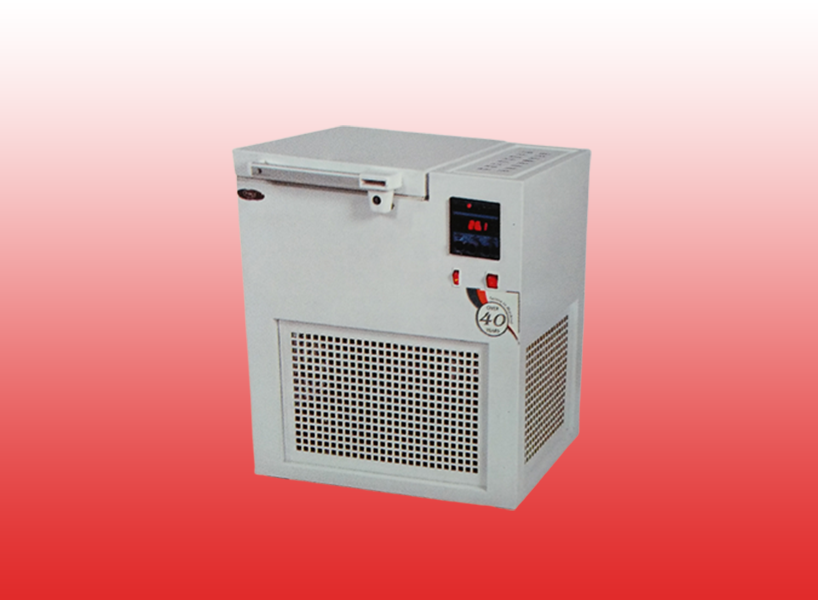

Yorco Refrigerated Water Bath YSI-265

The body of the bath is mounted on a sturdy angle iron frame with inner chamber consisting of thick polished stainless steel reservoir with cooling coil continuously soldered on the outside of the same to ensure perfect cooling effect to achieve + 0°C. The outer wall is made of thick CRC sheet pre treated and powder coated paint for longer life. The hollow space between the inner chamber and outer wall is filled with high grade insulation to prevent loss of temperature. The Environment friendly CFC Free refrigeration system consisting of Hermetically sealed ISI marked reputed make compressor for minimum noise level and smooth operation. Coupled with other quality components, it ensures a high degree of reliability over a long period.
Heating system comprises of ISI marked immersion type heating element for attaining temperature above ambient. A glass viewing window is provided for having an inside view of the Working Chamber. The unit is provided with a high performance circulation pump to circulate the inside fluid to ensure a constant and uniform temperature throughout. The circulation system is also provided with outlets to externally circulate the water/fluid, for example in the condenser coil of Soxhlet’s apparatus/Rotary evaporator etc.

icon

Product Features

The unit serves the dual purpose i.e. it can be used as a stand alone unit, as well as, a part or subsystem of some bigger system. Temperature Range 0°C to 90°C with solid state Digital Temperature Controller cum Indicator incorporating highly reliable RTD-Pt. 100 and CMOS ICs for noise immunity. Environment friendly (CFC free) refrigerant. PUFF insulated. Heating system comprises of ISI marked immersion type heating element for attaining temperature above ambient. A glass viewing window is provided for having an inside view of the Working Chamber. The unit is provided with a high performance circulation pump to circulate the inside fluid to ensure a constant and uniform temperature throughout. The circulation system is also provided with outlets to externally circulate the water/fluid, for example in the condenser coil of Soxhlet’s apparatus/Rotary evaporator etc.
