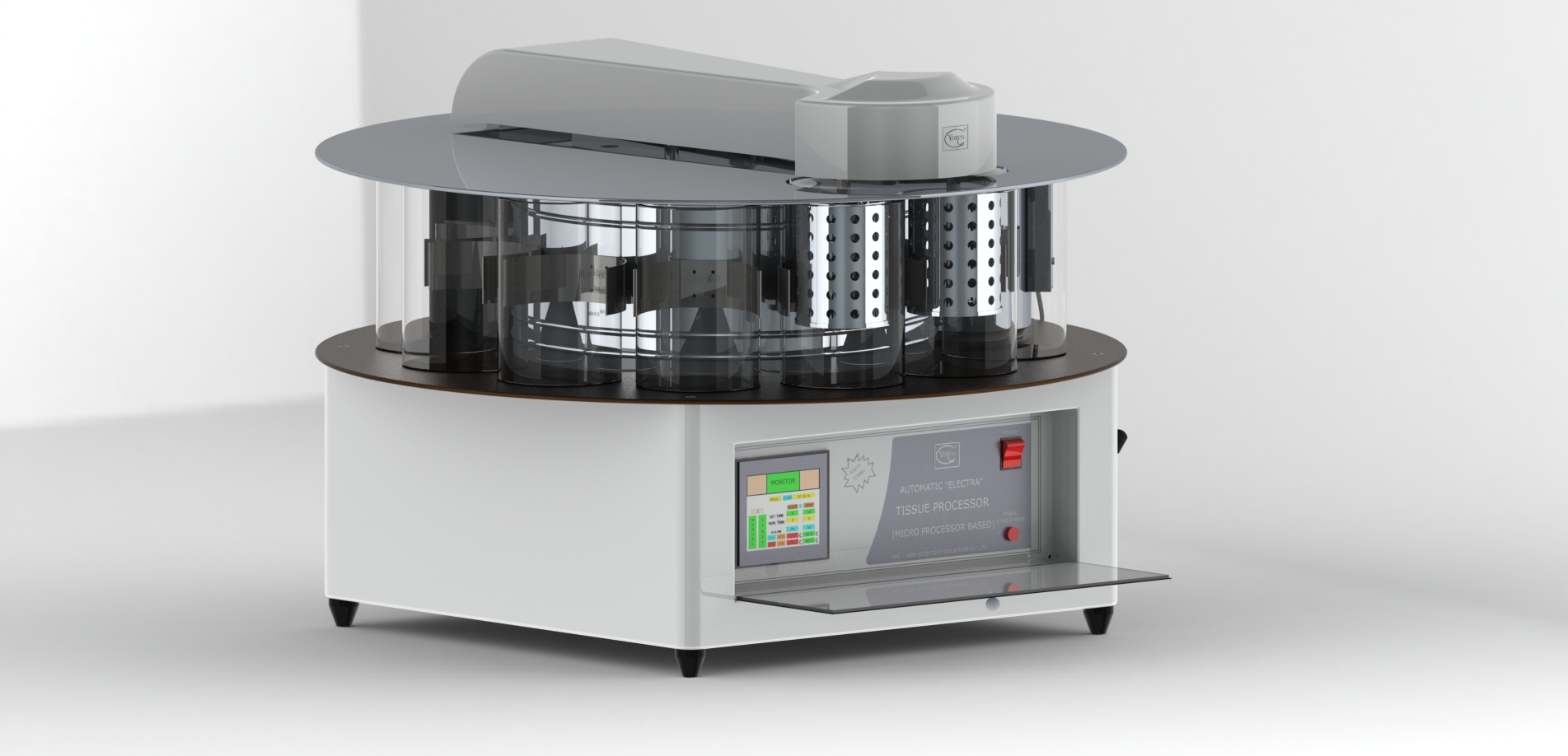

Yorco Automatic Tissue Processor YSI-104
"Electra Model" (Micro Processor Controller Based)

Yorco Automatic Tissue Processor YSI-104 is a Benchmark in the Carousel-type Automatic Tissue Processors and is undoubtedly the prized installation in all Pathology Laboratories of repute. It has a big installation base and its accurate performance and high reliability has been proven with each new installation

Technical Data

The 12 stage timing structure may be programmed for every stage for duration between 60 second to 9 Hrs. 59 Minute, in steps of 60 second.

Delay time:

Delay time can be programmed up to 99 hours and sequenced with main control.

Basket Rotor:

Slowly rotating two basket rotors are also functioned through the microprocessor.

icon

Product Features

Wax Bath safety control:

It is driven by a latest Microprocessor PID Controller with Touch Screen Color LCD Display for Programming of each and every Process Parameter. 1 Program Memory is available. All Pathology Labs where its installed have experienced considerable increase in throughput and better processing economy.

icon

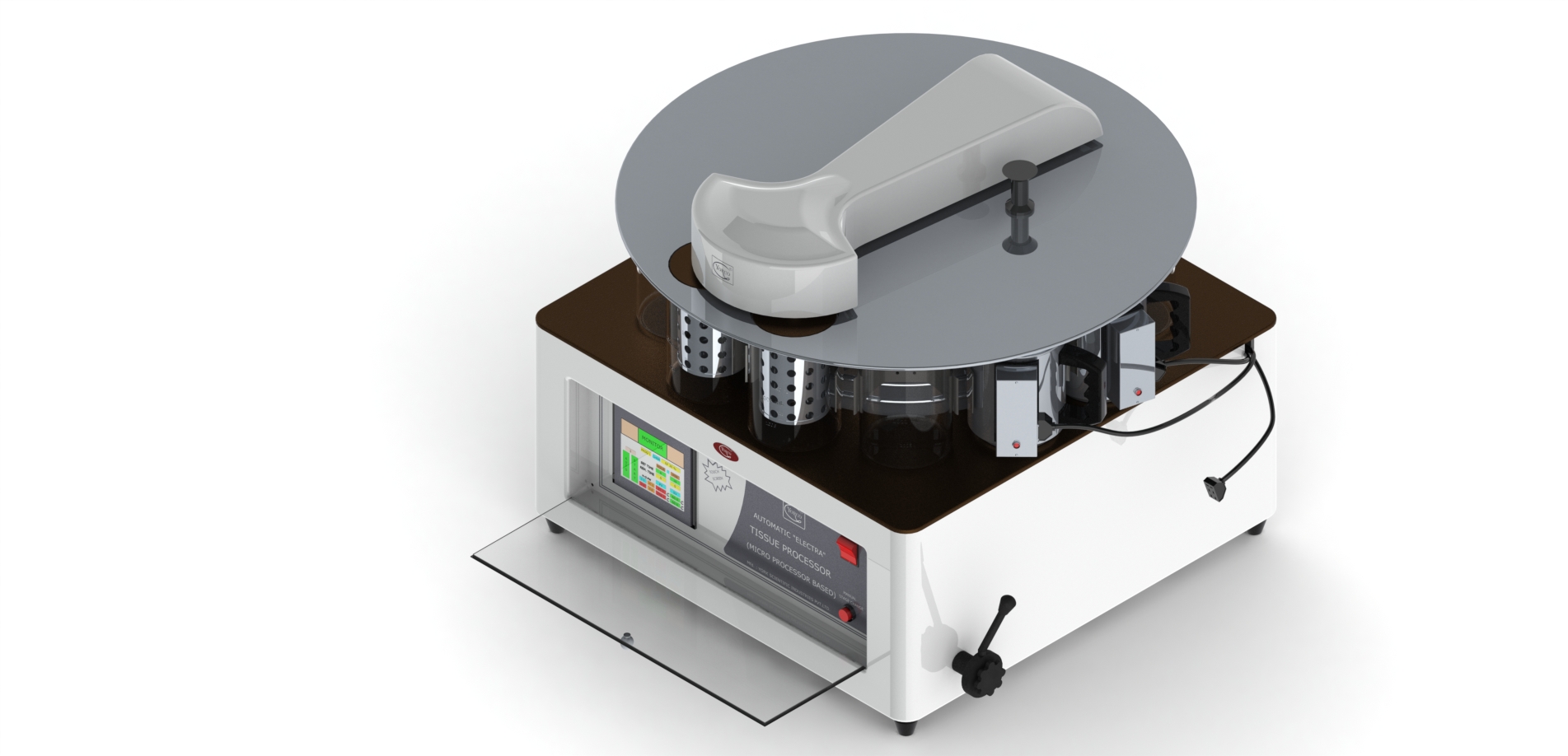

YSI 104 with Bath safety control

Wax Bath safety control:

Automatic wax Bath designed for PT 100 sensor and PID control. It signal’s the machine in stage 9, prior to immersion in wax and if wax is melted it inevitably takes change from stage 9 to 10 and so on, but if wax is not melted due to any cause, then machine signals “wax not melted or temperature is not proper “when wax is melted /wax temperature is managed then only the tissue basket is permitted to immerse in the wax bath. Thus 100% safety of valuable tissues.

icon

Supplied Complete With :

S.S. Tissue Capsule

2 No.

S.S. Beakers without lip

10 No.

Basket Rotators

2 Nos.

S.S. Wax baths

2 Nos.

Capacity

1 , 2 liter

Optional / Spare Accessories :

  • Basket Rotor which rotates the tissue basket slowly.
  • Tissue capsule Basket of S.S. with even perforation.
  • Tissue Capsule S.S. 28*28*9mm with sliding cover.
  • Tissue Capsule S.S. 20*20*10mm with sliding cover.
  • Divider for tissue capsule ‘S’ shape.
  • Divider for tissue capsule ’V’ shape.
  • Beaker without lip.
