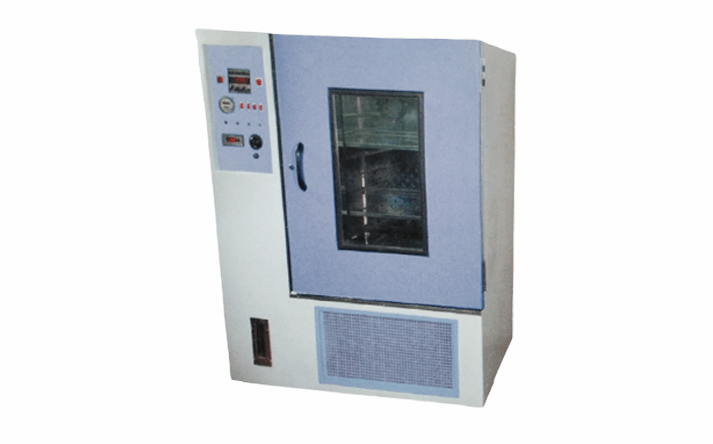

Yorco Environment Test Chamber YSI-455

Elegantly designed double walled cabinet to provide controlled atmosphere by varying Temp. and relative Humidity values above freezing point for conducting various R & D tests eg, Plant & Animal growth test, pharmaceutical tablet stability test, determination of dielectric test, Packed material vapour test, Insulation test of electrical component. Inner Chamber made of S.S.–304 grade thick sheets and outer wall is of thick cold rolled steel duly pretreated and powder coated. A heavy door with a see through window is also provided.

Temp. range from 10 to 60°C ± 1°C and Rel. Humidity 40% to 95% ± 3% is controlled with Microprocessor based programmable Controller cum Indicator for displaying Temp in Co. & Humidity in %age directly. Heater take care of temp. above ambient where as hermetically sealed compressor of reputed make such as Tecumesh/Emersion etc. which is using Environment friendly CFC free refrigerant maintains below ambient and the unit is PUF insulated, where as humidity is created by natural mist through Steam generation.

icon

Product Features

Salient Features :-

  • Non volatile memory for data storage of upto 2500 records
  • User friendly Microprocessor Design /Operation
  • Audio Visual alarm warnings to Temp. & RH variation and low water level
  • Capacitance type humidity sensor for direct display of humidity in % RH
  • Built in safety circuit, which cuts off system & stops unit in case of malfunction of Microprocessor
  • RS-232 Port (interface) for keeping hard copy of temperature Humidity, Time & Data
  • High voltage safety cutoff for unit protection
  • Adjustable print interval with printer (Optional)
icon

Environment Test Chamber YSI-455 with Chamber Inner Size

Inner Chamber Size :-

  • W x H x D
  • 455 x 710 x 455mm
  • 605 x 605 x 605mm
  • 605 x 910 x 605mm

Optional Accessories :-

Voltage Stabiliser ...... 3 KVA
PID with RS 232 interface & Parralel Port for Printer

icon

Features

Elegantly designed double walled cabinet to provide controlled atmosphere by varying Temp. and relative Humidity values above freezing point for conducting various R & D tests eg, Plant & Animal growth test, pharmaceutical tablet stability test, determination of dielectric test, Packed material vapour test, Insulation test of electrical component. Inner Chamber made of S.S.–304 grade thick sheets and outer wall is of thick cold rolled steel duly pretreated and powder coated. A heavy door with a see through window is also provided. Temp. range from 10 to 60°C ± 1°C and Rel. Humidity 40% to 95% ± 3% is controlled with Microprocessor based programmable Controller cum Indicator for displaying Temp in Co. & Humidity in %age directly. Heater take care of temp. above ambient where as hermetically sealed compressor of reputed make such as Tecumesh/Emersion etc. which is using Environment friendly CFC free refrigerant maintains below ambient and the unit is PUF insulated, where as humidity is created by natural mist through Steam generation.
