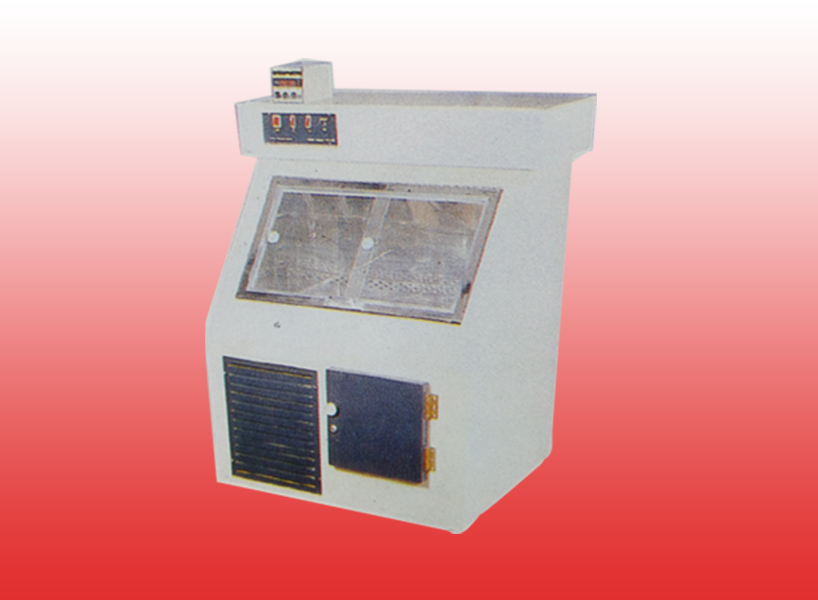

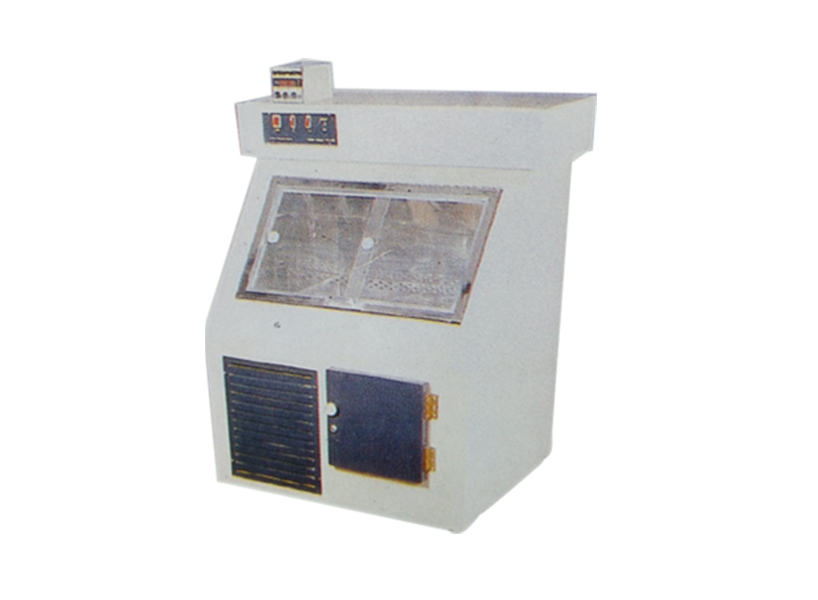

Yorco Forezen Semen Storage Cabinet YSI-578

Designed to provide a cold working place for scientist or doctors to store and manoeuver the frozen semen of animals. Doubled walled with mild steel panels for outer surface and polished stainless steel inner chamber with insulation in between. Exterior surfaces are chemically created, antirust coated and finished with powder coated paint. Front opening door is made of clear acrylic sheet. The whole unit is mounted on castor wheels for easy movement. The heavy duty hermetically sealed cooling system provides temperature of 4°C in working area. Cooling system has a fan mounted next to the compressor to prevent over heating. Design allows handling the unit with the door open condition for extended period of time. Solid state temperature controller cum digital display maintains the chamber temperature accurately between 3°C to 4°C. Heavy duty blowers are mounted for uniform circulation of air with in the chamber maintaining positive flow of air. This minimises the temperature gradient within the chamber. Environment friendly (CFC free) Refrigerant. PUFF Insulated.

Size of the Chamber :-

188 × 660 × 1250 mm


Product Features

Technical Features

  • Temp. Range
    Temp. Range
  • Temp. Controller
    Solid State
  • Temp. Reading
    Digital Display
  • Insulation
  • Cooling System
    Hermetically sealed cooling system with fan cooled condenser and compressor
  • Internal Circulation
    Tangential air flow recycle type
  • Front Door
    8 mm thick acrylic sliding door
  • Illumination
    40 Watts Fluorescent tube with external switch
  • Front Panel
    Houses all controls
  • Gas/Vacuum Cock
    2 Nos.
  • Working Table
    Sunmica Table/S.S. Sheet
  • Working Chamber
    Stainless Steel
